Applications

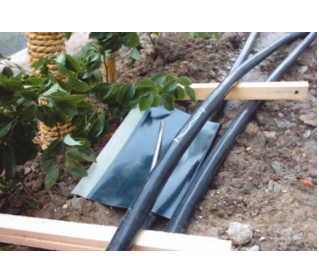

sleeve is simply wrapped around the damaged cable area,quickly repaired.For use on standard poly- or elastomeric-insulated/jacketed cables,which may include aluminum or steel armoring
Description
RSWP Wraparound sleeve is made from a crosslinked,heat-shrinkable,thermally-stabilized polyolefin,which is coated with a hot-melt adhesive,creating a water-tight bond . It is same as closure RSB250 used.
Features

1.Economical and easy installation
2.Covered with thermo Paint
3.Sleeve can be cut easily
4.For insulation on low voltage cable up to 1000V
5.Fit a wide range of cable sizes







Selection


Size
Max cable dia
Min cable dia
Lengths supplied(mm)
RSWP
34
8
500,1000,1500,2000
RSWP
42
10
500,1000,1500,2000
RSWP
53
13
500,1000,1500,2000
RSWP
75
20
500,1000,1500,2000
RSWP
93
25
500,1000,1500,2000
RSWP
105
30
500,1000,1500,2000
RSWP
135
34
500,1000,1500,2000
RSWP
146
38
500,1000,1500,2000
RSWP
164
42
500,1000,1500,2000
RSWP
175
50
500,1000,1500,2000
RSWP
198
55
500,1000,1500,2000
RSWP
220
65
500,1000,1500,2000

NOTERSXP IS SAME AS RSWP
