Applications

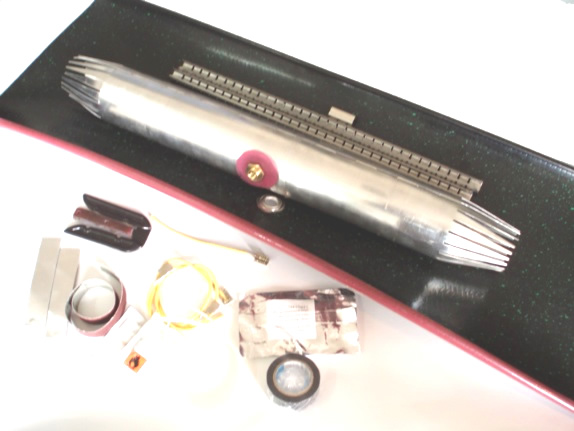

For pressurized cable networks-with metal canister and test valve. RSBA1000 pressurized splice closure system provides a fast and sample way to seal telephone cable splices in pressurized or non-pressurized telephone cable. It is used for aerial, buried and underground applications on polyethylene or lead sheathed cable in sizes up to 3600 pairs.
Description

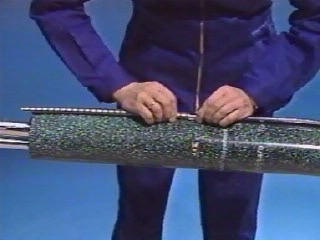

1000's sleeve is made of super-sleeve material, which combines the strength and durability of composite design with proven heat-shrink technology. Super-sleeve material is composed of several layers of specially blended polymers and adhesives, a fiber-reinforcing layer.The fiber-reinforcing layer provides excellent mechanical strength, and eliminates the propagation of localized damage that can result from overheating or other errors in installation. .Once the RSBA1000 sleeve has been installed, the composite design of the supper-sleeve material provides superior mechanical protection from forces such as impact, abrasion, UV light, and atmospheric contamination.
Features 1. High performance heat shrinkable closure for pressurised applications
2. Suitable for aerial,buried and ducted applications
3. Provides high mechanical strength
4. Applicable for polyethylene and metal jacketed cables

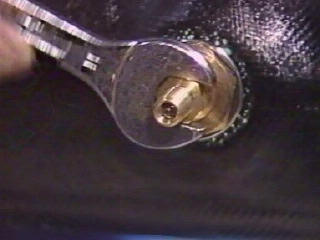

5. Pre-installed valve for pressure access and measuring
6. Up to 3 cables at each end can be accommodated using
three finger clips with hot-melt adhesive.

Selection

                                                           Dimention(mm)

Size

Splice bundle diaAMax

Cable Dia(B) Min

Sum of branch cable

Sheath opening nom.(L)

Nominal sheath opening

2 out

3 out

4 out

Max

RSBA1000 45/8-350

45

8

35

-

-

350

400

RSBA1000 62/15-250

62

15

52

40

-

250

350

RSBA1000 62/15-350

62

15

52

40

-

350

450

RSBA1000 62/15-500

62

15

52

40

-

500

600

RSBA1000 62/15-650

62

15

52

40

-

650

725

RSBA1000 92/30-300

92

30

82

70

58

300

422

RSBA1000 92/30-350

92

30

82

70

58

350

446

RSBA1000 92/30-500

92

30

82

70

58

500

600

RSBA1000 92/30-650

92

30

82

70

58

650

750

RSBA1000 122/38-300

122

38

112

100

88

300

425

RSBA1000 122/38-500

122

38

112

100

88

500

600

RSBA1000 122/38-650

122

38

112

100

88

650

750

RSBA1000 160/55-300

160

55

142

130

118

300

450

RSBA1000 160/55-500

160

55

142

130

118

500

650

RSBA1000 160/55-650

160

55

142

130

118

650

815

RSBA1000 200/65-500

200

65

172

160

148

500

650

RSBA1000 200/65-720

200

65

172

160

148

720

825
